01 · Form finding
Twist, taper, evaluate.
Galapagos searches twist, scale and count against a Ladybug radiation study.
Evolutionary solver exploring the form space
Form matrix
Candidates with their radiation roses
Reinforcement learning · UCL Digital Studio · with Raghul Siva · 2024
A twisted tower, panelled and rationalised — then a PPO agent learns to open and fold its skin from a week of simulated sun.
01 · Form finding
Galapagos searches twist, scale and count against a Ladybug radiation study.
Evolutionary solver exploring the form space

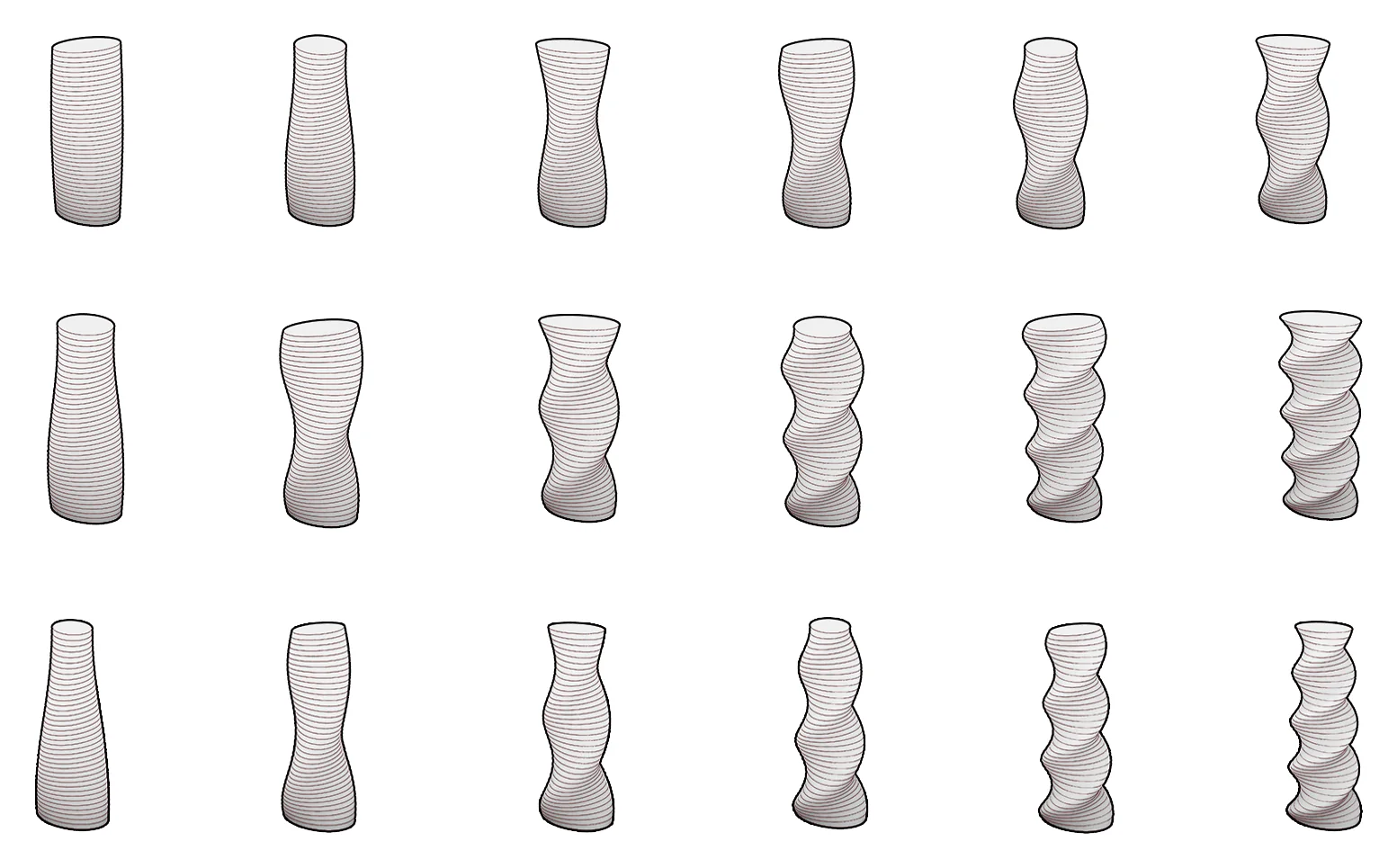

Form matrix

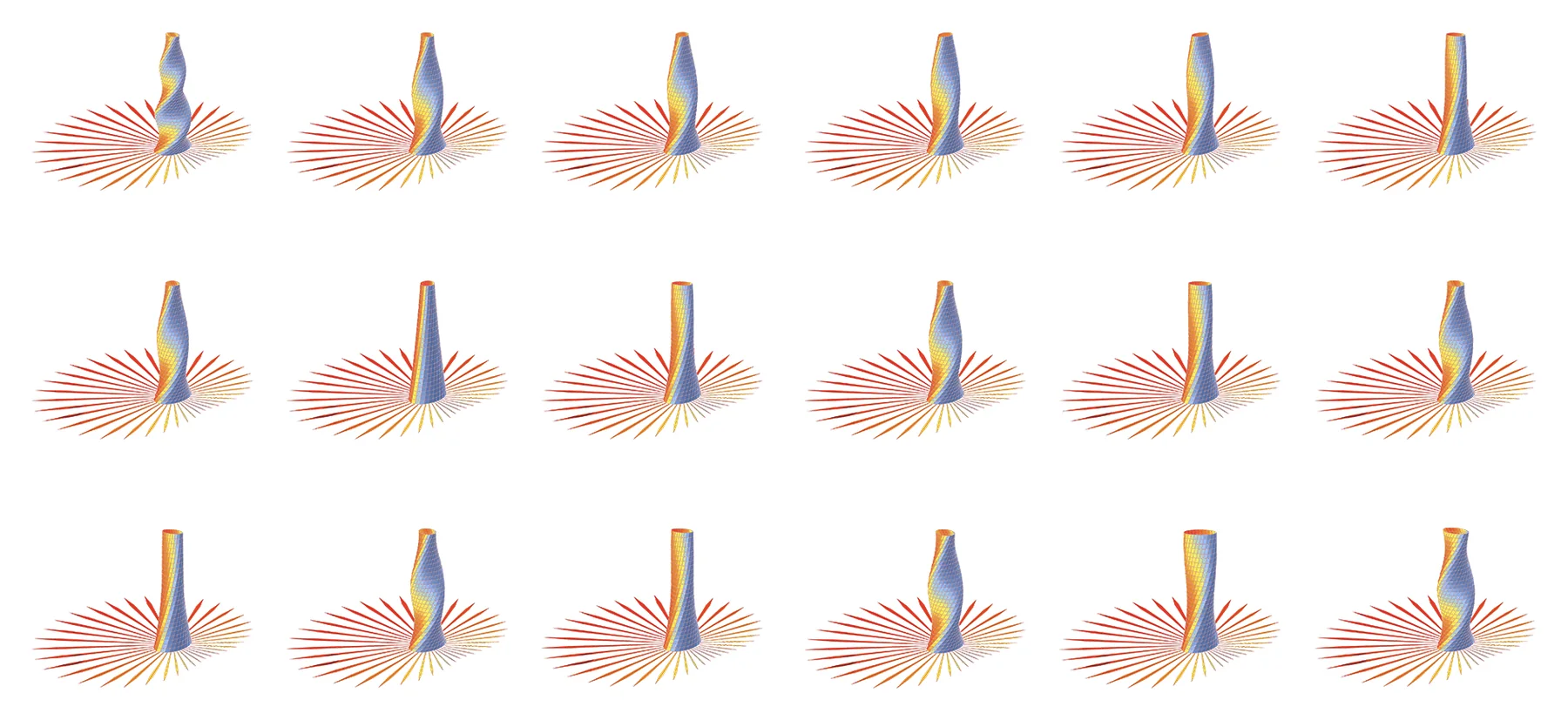

Candidates with their radiation roses
02 · Panelisation
Hexagons where the surface is gentle, triangles where it isn’t; relaxed with Kangaroo, clustered with a Gaussian mixture model.

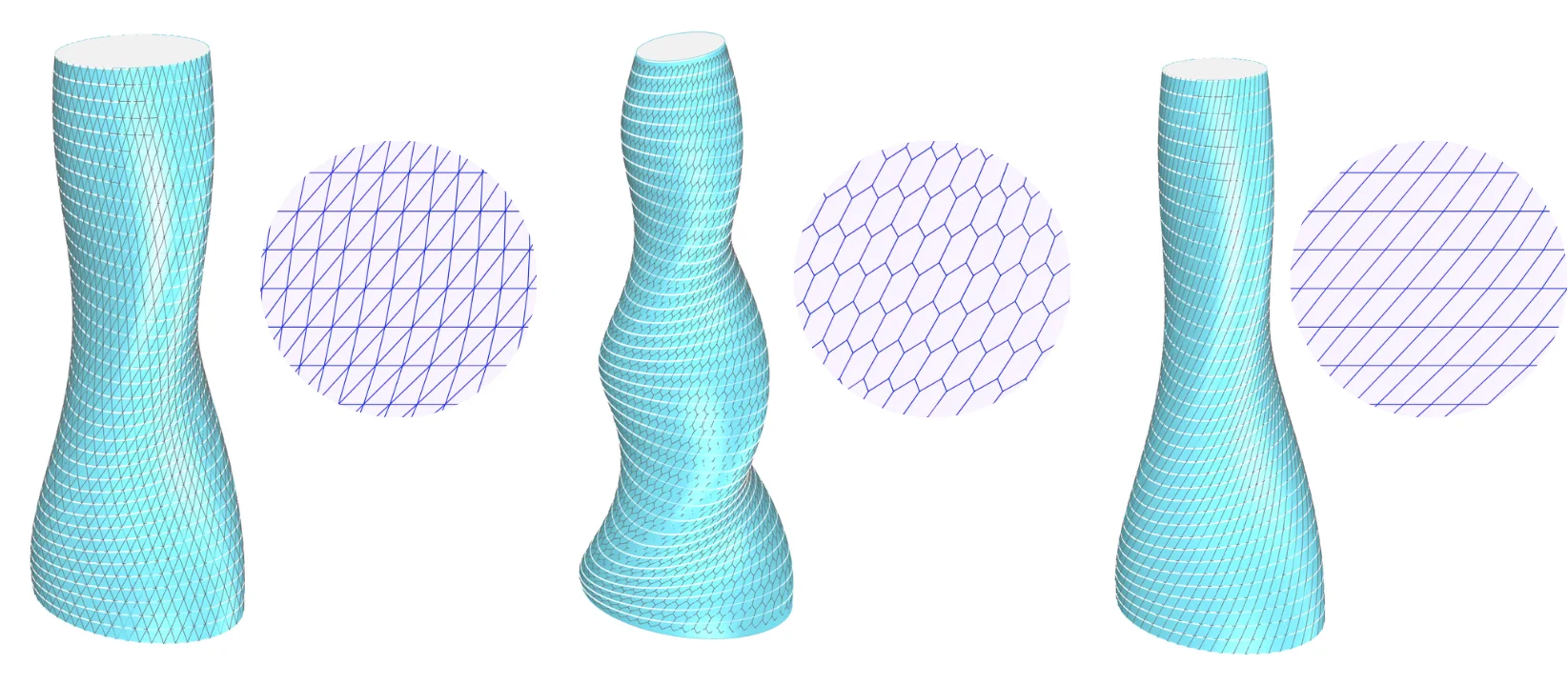

Three towers and their unrolled grids
Relaxation — Kangaroo settling the mesh

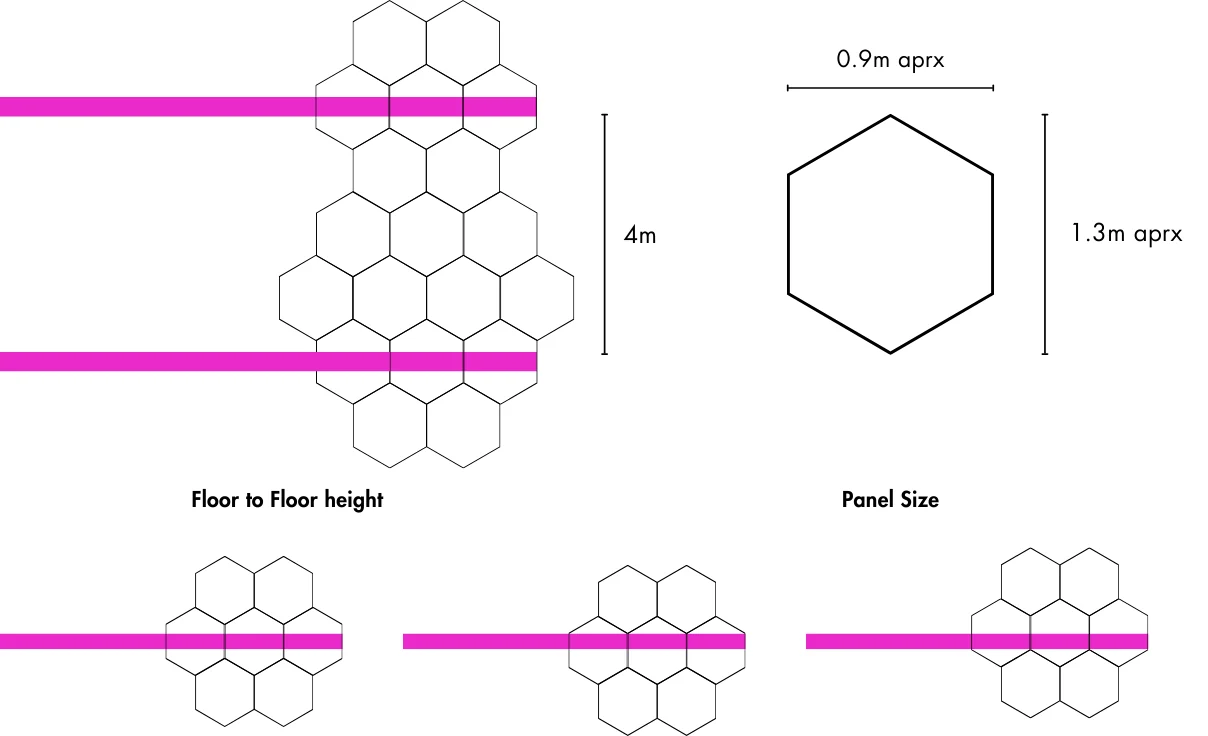

Rules — 4 m slabs, ~1.3 m hexagon

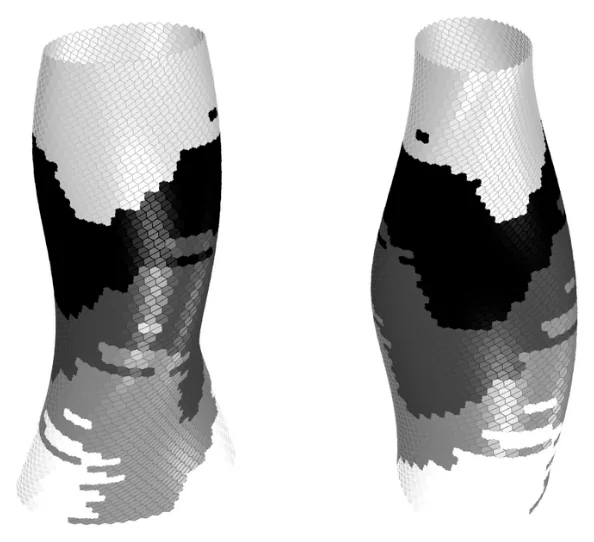

GMM clusters mapped back
03 · Adaptive components
Folding experiments in Kangaroo. Each is a single-parameter action an agent can learn to drive.
01 Triangulated iris
02
03
04
05 Petal fold
06
07
08 Diamond fold
Three systems tracking the sun

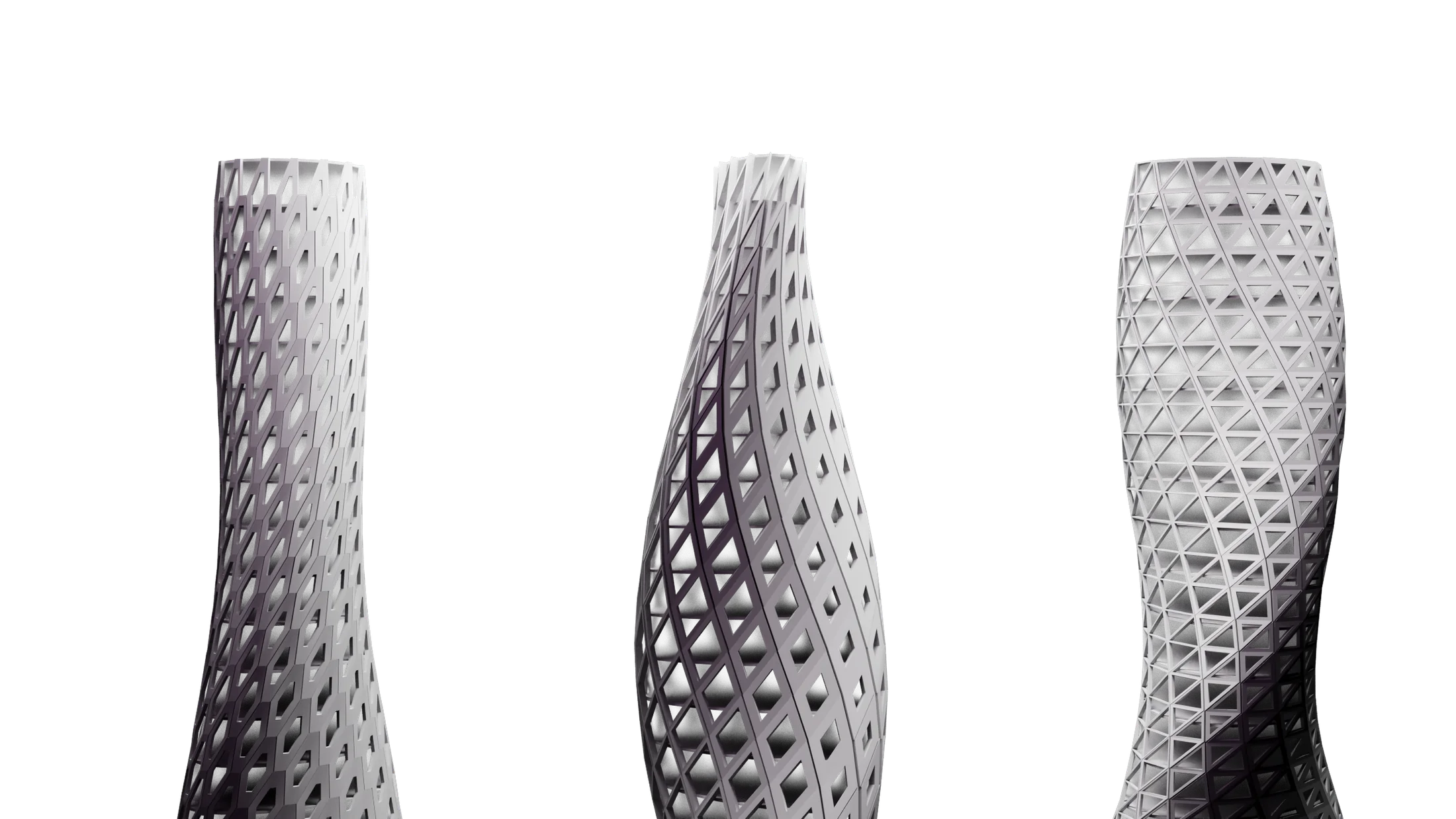

Three systems, three towers — hexagonal scaling, triangular folding, diamond folding

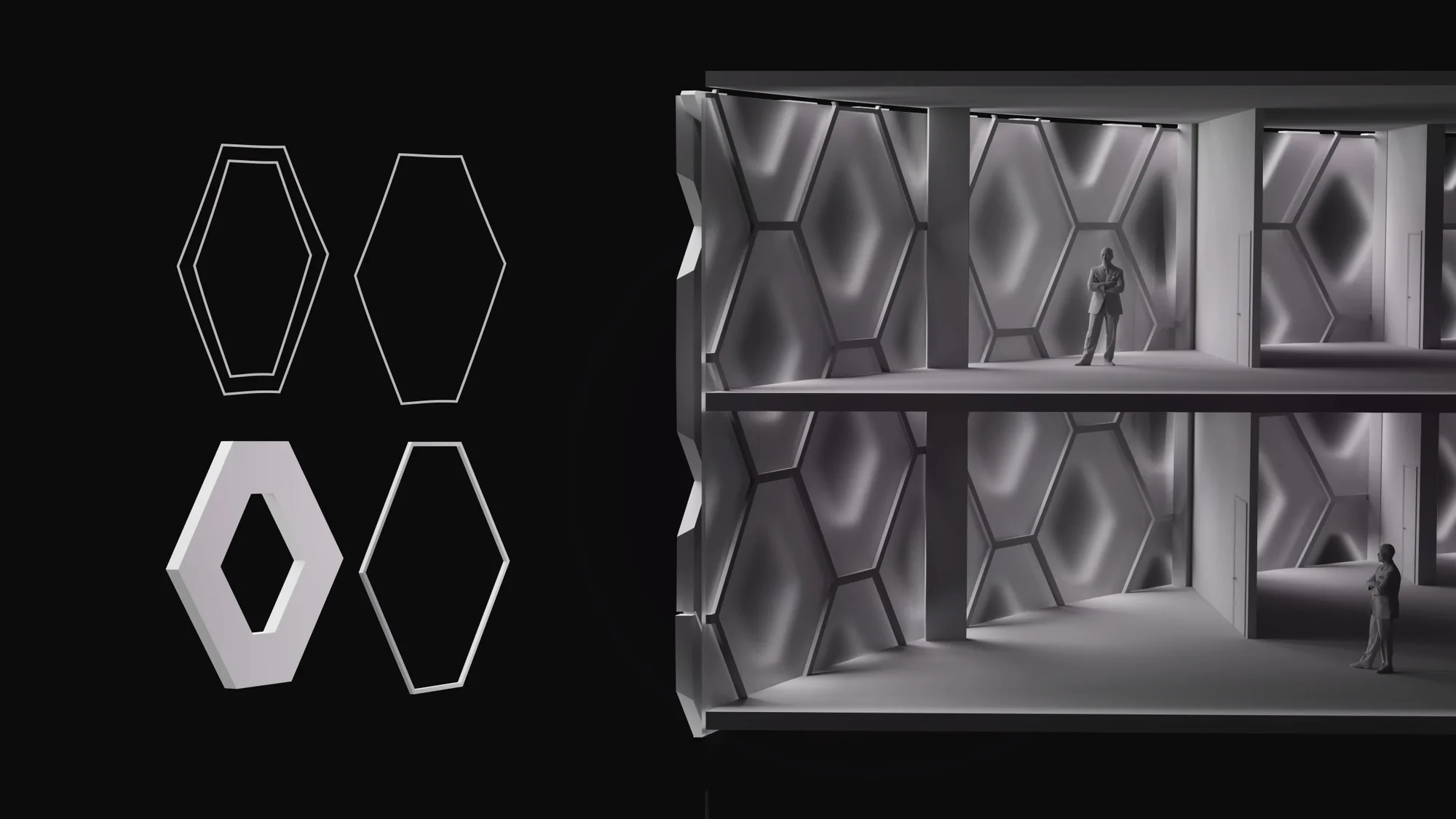

Section — hexagonal scaling

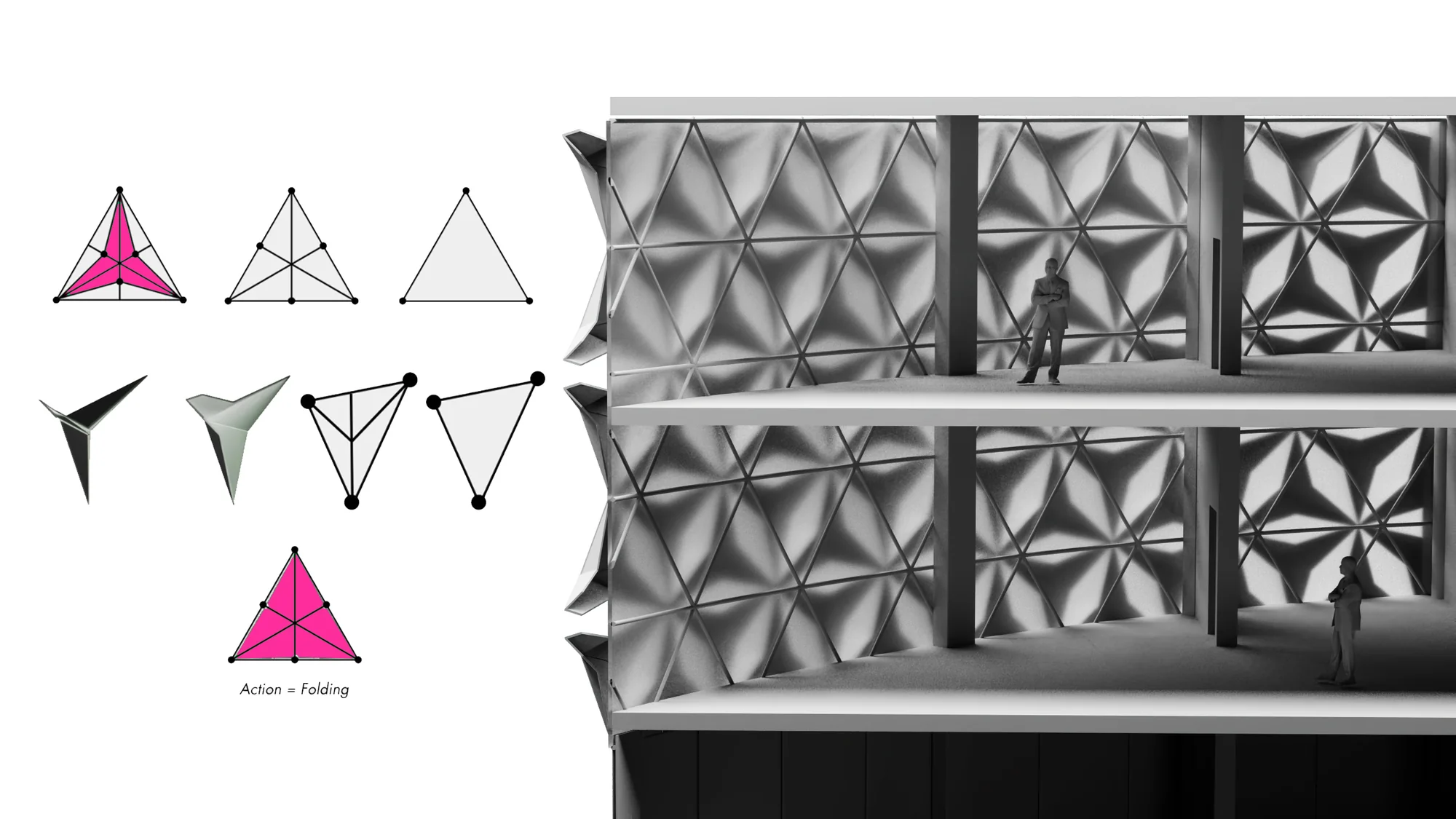

Section — triangular folding
04 · Reinforcement learning

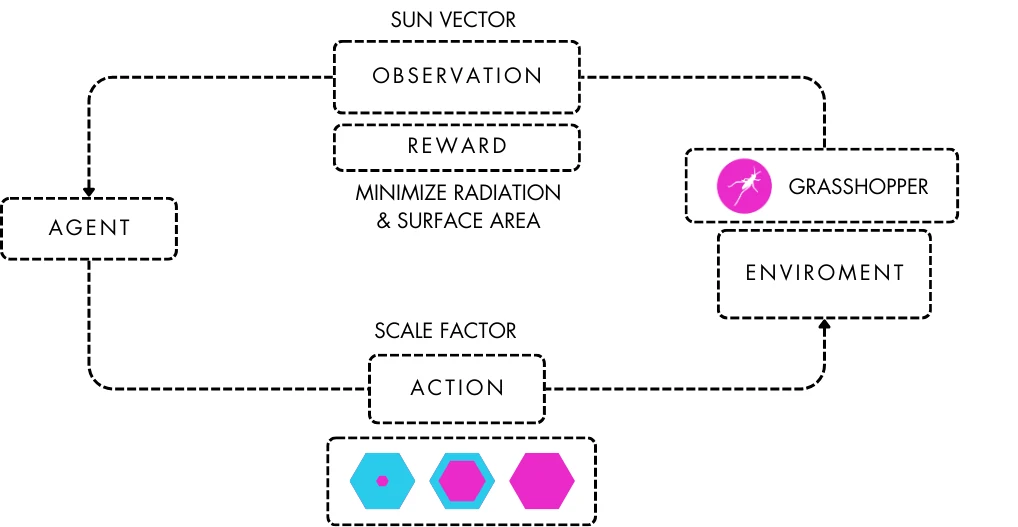

Observation: sun-vector radiation per panel. Action: scale factor. Reward: less radiation, less deployed surface. Trained with PPO on 1, 2, 4 and 8-day windows and tested on unseen days.
Training — one panel learning to close
Training — top view
Trained policy on the tower — apertures tracking the sun through a day

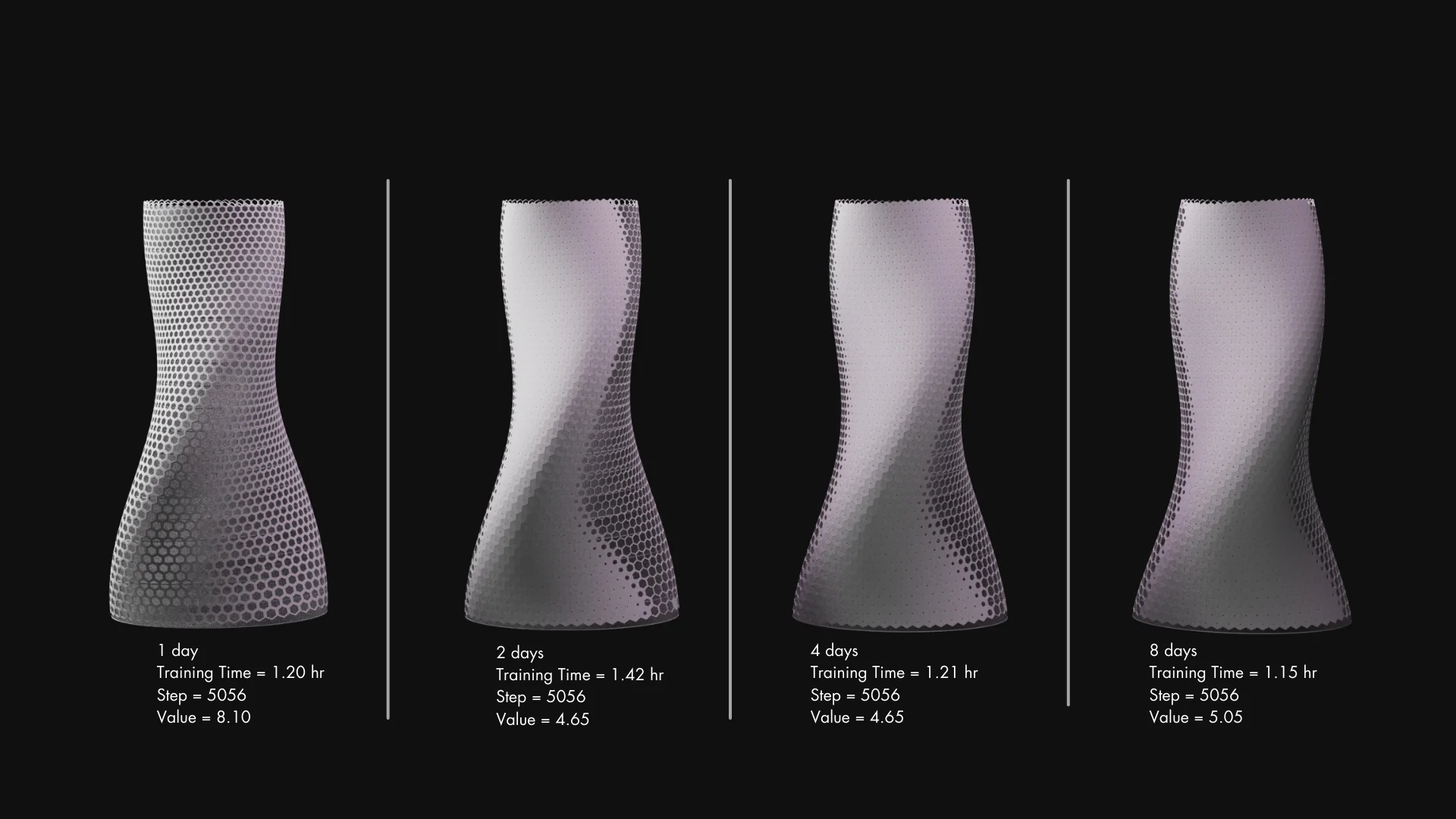

1 · 2 · 4 · 8 days of training

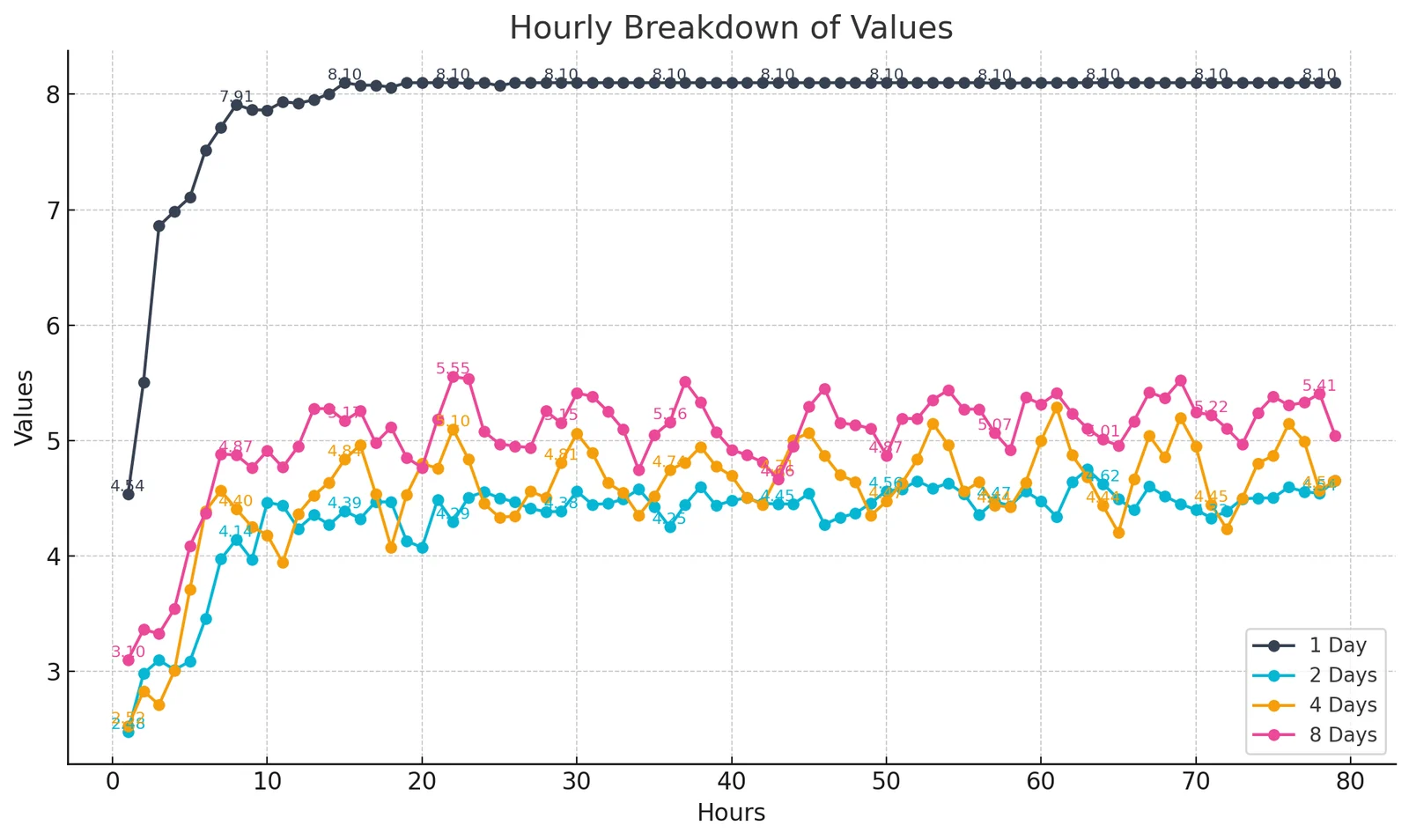

Hourly values — longer windows converge lower

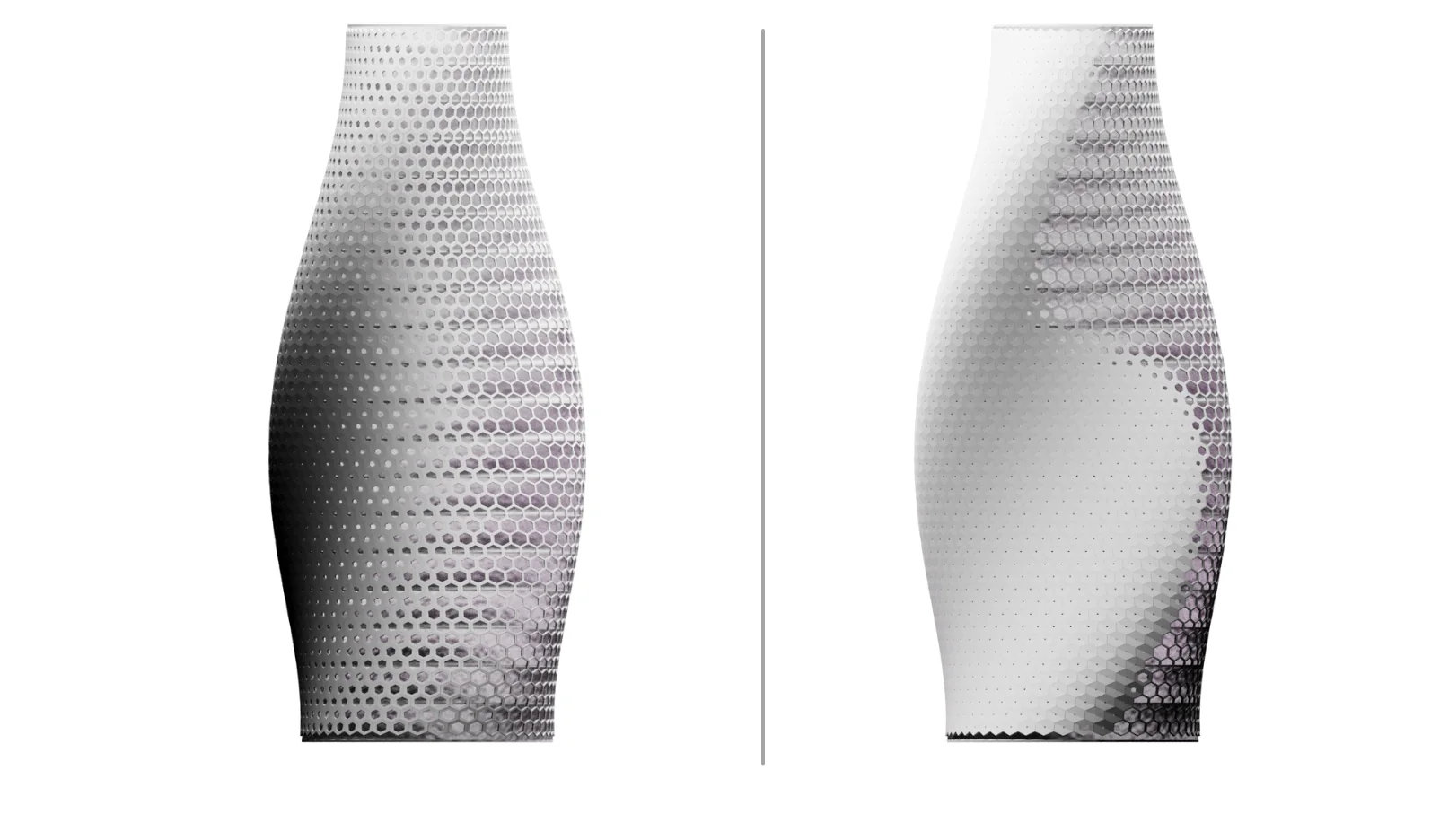

RL policy vs parametric rule, same tower, same sun
Interactive
Aperture ∝ 1 − radiation. Move the sun around a curved tower face.
